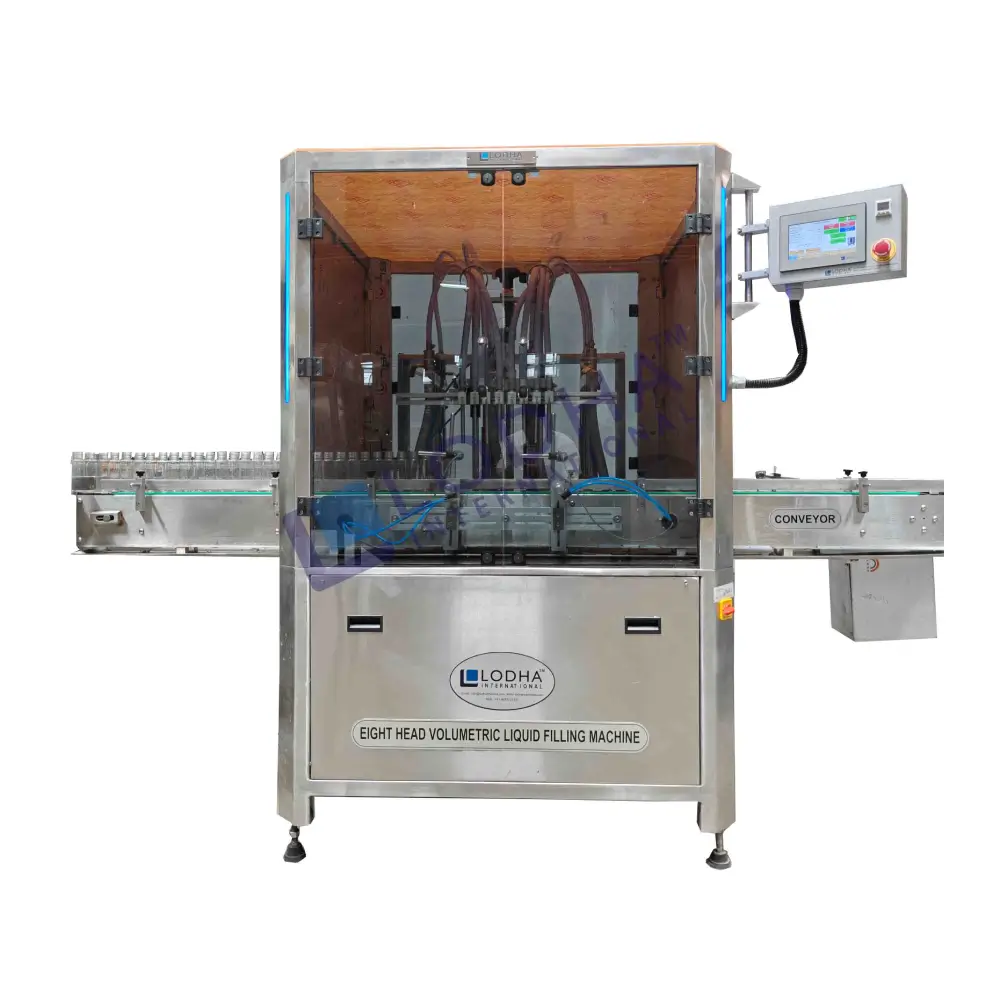

Manufacturer of High Speed Volumetric Liquid Filling Machine

The rapid High Speed Automatic Volumetric Liquid filler is utilized to preserve product volume. Our volumetric filling devices are designed for adjustments in small container sizes. Lodha’s High Speed Volumetric Liquid Filler adheres to the stringent standards of the pharmaceutical, food, and cosmetics industries.

A high-speed volumetric liquid filler, available in eight or twelve heads, features a variable-speed drive conveyor and intuitive controls for ease of use. All components that come into contact with water or juice are made from safe, non-toxic materials. No special tools are required for cleaning it. Our technology enables consistent, precise, and automated filling of volumes ranging from just a few grams to approximately 1 liter, supported by additional size adjustment components. Our offerings are capable of handling a diverse range of fluids and pastes, including those with high viscosity, such as flavorings and semi-liquids commonly utilized in the pharmaceutical, cosmetic, food and beverage, agricultural, and chemical sectors.

Share

Notable Characteristics

  • No Bottle: Machine Shutdown, No Bottle = Machine Won’t Refill
  • All points of contact are made of corrosion-resistant SS316, and they can be quickly and easily removed for auto-caving, sterilizing, and cleaning.
  • Stainless steel 304 machine parts
  • Foamless Diving Filling Nozzle
  • Highly Accurate Fills
  • Fully-Mechanized Bottle Feeding and Disposal
  • Relatively Little Change Over Time
  • An innovative bottle separator that is not dependent on pneumatics and can spin freely
  • A Fully-Integrated AC VFD System

Supplemental Materials

  • Washing system using an automated conveyor belt.
  • The use of nitrogen for pre- and post-filling flushing.
  • Programmable Logic Controller
  • Acrylic display case.
  • A mechanism for online pre-inspection.
  • Holding tank (floating tank) with or without a mixer.

Technical Specification

SpecificationDetails
ModelLI-BF 8
Bottle Diameter30 mm to 100 mm
Filling Range20ml to 1000ml with help of Change Parts/ Syringe
Accuracy+/- 1% Depending on Liquid with Single Dose
Electrical440 Volts, 3 Ph. 50 Hz. 4 Wire System
Power2 H.P.
SpeedUp to 120 Bottles Per Min
Conveyor Height800 – 850 mm
Overall Dimension3000 mm (L) x 900 mm (W) x 1550 mm (H)
Net Weight750 Kg
