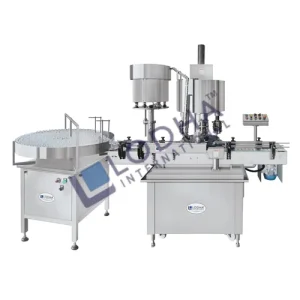

Automatic Chemical Bottles Capping Machine
Manufacturer of Automatic Chemical Bottles Capping Machine
Automatic Chemical Bottle Capping Machines designed to fit your production needs, employing cutting-edge technology for improved speed and accuracy. Whether you require machinery for production lines with large containers and enclosures or for high-speed applications that necessitate automatic capping with torque control, we provide solutions customized to your needs. Our capping machines are engineered to reliably apply and torque closures onto bottles, accommodating inline threaded caps, crimp on, or press on caps, guaranteeing precise and consistent application with each use.
Process Operation
The feed container travels along the conveyor belt into the star wheel, positioning it beneath the screwing head during the next indexing phase. Simultaneously, the cap is received from the delivery chute of the cap feeding bowl, while the body and neck of the container are aligned under the motorized rotating head, which is controlled by a cam for vertical movement. The screwing head operates flawlessly, and the rotating head is engineered to seal the container effectively.
Salient Features
- Absence of a container and cap setup.
- Automated control system utilizing a PLC integrated with a touchscreen interface.
- The conveyor belt features an adjustable height for seamless alignment with other machinery.
- Every contact component is crafted from stainless steel 304.
- Full enclosure utilizing high-quality matte finish stainless steel panels and acrylic doors.
- Adjustable capping head with magnetic torque.
- Minimal noise output, energy-efficient usage.
- Self-lubricating UHMW-PE guide profile designed for a low-friction wear surface, ensuring smooth and quiet conveying.
- Quick and effortless transition with a single touch sync.
- Machine designed to process HDPE, plastic, and PET containers.
Technical Specification
| Model No. | LI-BCS 1 | LI-BCS 4 | LI-BCS 8 | |||
|---|---|---|---|---|---|---|
| Bottle Diameter | Up to 85mm or other shape bottle with proper base | |||||
| Bottle Height | Up to 300mm | |||||
| Plastic Screw or CRC Cap Size | Up to 38mm | |||||
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | |||||
| Power | 1.0 H.P. | 2.0 H.P. | 3.0 H.P. | |||
| Conveyor Height | 815-850 mm | 800-900 mm | 850-900 mm | |||
| Overall Dimensions | 1500 mm (L) x 735 mm (W) x 1800 mm (H) | 1500 mm (L) x 1000 mm (W) x 2000 mm (H) | 2000 mm (L) x 1050 mm (W) x 2000 mm (H) | |||
| Production Speed | Up to 60 BPM | Up to 100 BPM | Up to 200 BPM | |||
* Specification can be changed as per customer’s requirements
* More Higher Capacities Machine Models available on specific request of customer
